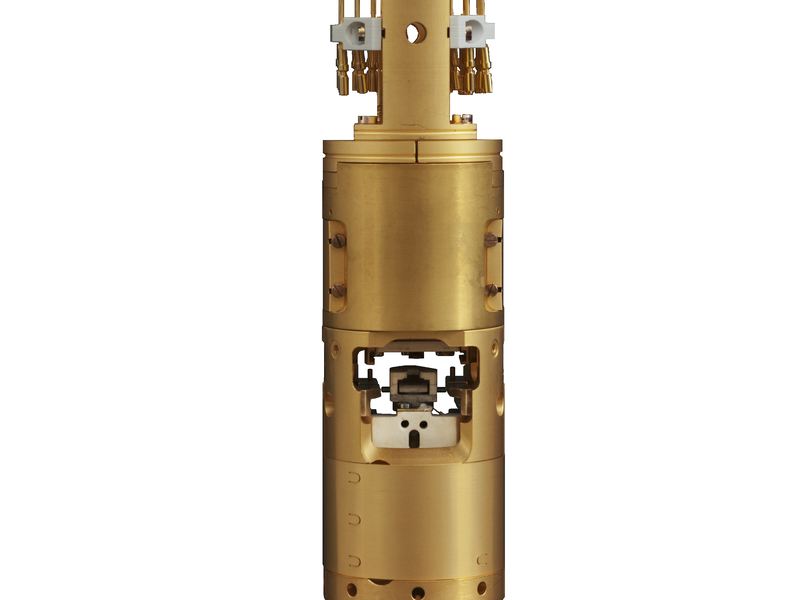

TRIBUS-ULTRA SPM head with different adapters for Integration in POLAR-5T or in custom build mk-/magnet cryostats
TRIBUS for Polar  | © Scienta Omicron
TRIBUS-ULTRA SPM head with different adapters for Integration in POLAR-5T or in custom build mk-/magnet cryostats

TRIBUS SPM

Universal SPM Head: Compact, Rigid and Stable

SPM LT SPM STM STS LT STM SP-STM SP-STS IETS HDL Manipulation Nanolithography AFM nc-AFM QPlus AFM SCM

  • Rigid design with small footprint
  • STM, AFM & spectroscopy
  • Compatible with low temperatures down to mK range
  • Entirely non-magnetic design
  • Orthogonal 3D coarse motion
  • Independent tip and sample exchange
  • Easy handling

The ultra-compact TRIBUS is a universal SPM for a wide variety of applications. Whether for SPM-spectroscopy, surface imaging, or manipulation of nanoparticles, for experiments at elevated temperatures or at the milli-Kelvin scale, in high magnetic fields or in spatially tight environments, the TRIBUS SPM is the ideal choice whenever highest resolution, accuracy and flexibility are required.

The TRIBUS SPM head was designed for high resolution STM, QPlus®-AFM, and spectroscopy experiments in a temperature range between mK and up to 420 K.

Due to its small footprint, non-magnetic materials, and compatibility with a wide temperature range the integration into almost every UHV environment is possible.

Special attention was paid to the selection and pre-characterisation of materials for the TRIBUS head. As a result, it has a minimal thermal drift and optimum stiff ness, which yields excellent stability in the SPM.

Aspects such as 3D coarse motors with independent and orthogonal axes, and easy and safe in-situ tip and sample exchange, facilitate ease of daily work. Additional features such as multiple electrical sample contacts and optical access ports extend the possible applications beyond standard SPM measurements.

There are two variants of the TRIBUS: TRIBUS Ultra for temperatures down to mK range and high magnetic fields (> 2T), and TRIBUS for temperatures above 1.1 K and magnetic fields of < 2T.

Contact Us Email: info@scientaomicron.com

More Information

STM Results

STM: Au(111)@ 9.6 K; Instrument: INFINITY SPM with integrated TRIBUS

dI/dV spectroscopy on NbSe2 at T=400 mK; Instrument: TRIBUS-ULTRA integrated in 300mK 3He Magnet Cryostat; Data courtesy of Steffen Wirth, MPI Dresden, DE
MPI Dresden, DE

Mn/W(11) spin-orbit contrast of spin-spiral in 1st monolayer; Instrument: TRIBUS-ULTRA integrated in 300 mK 3He Magnet Cryostat; Data courtesy of Paolo Sessi, Felix Kuester and Dirk Sander, MPI Halle, DE

dI/dV map of Si(111)7x7 at 1.8 V. Instrument: Infinity SPM Lab.

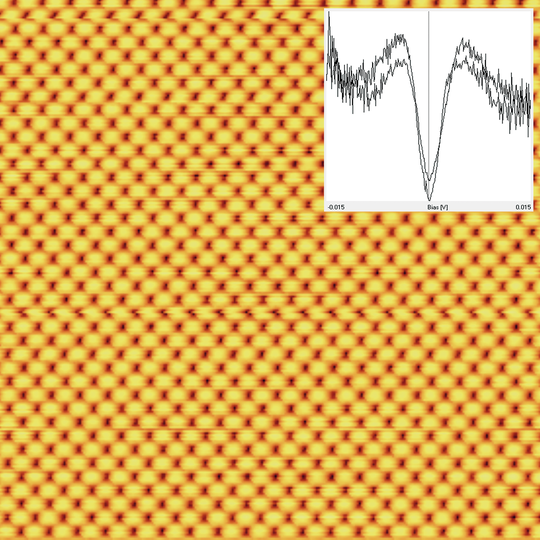

STM: Pb(100) @ 4.5 K; Instrument: POLAR XT with integrated TRIBUS-ULTRA; data courtesy of Thomas Gardenier and Ingmar Swart, University of Utrecht, NL

QPlus® Results

QPlus®: NaCI(001) single crystal @ 9.7 K (A=330 pmpp), Instrument: INFINITY SPM with integrated TRIBUS

QPlus®: NaCI(001) single crystal @ 9.7 K (A=100 pmpp), Instrument: INFINITY SPM with integrated TRIBUS

QPlus®: NaCI(001) single crystal @ 9.7 K (A=13 pmpp), Instrument: INFINITY SPM with integrated TRIBUS

QPlus®: NaCl(001) @ B = 5T and @4.35 K; Instrument: POLAR XT with integrated TRIBUS-ULTRA

Optical Access

Multiple access ports for in-situ evaporation, optical observation & illumination, and in-situ tip and sample exchange.

Multiple Sample Contacts

In addition to the standard sample contact, the sample acceptor stage carries up to 10 electrical contacts

Downloads

TRIBUS SPM: Compact UHV Head

05/02/2020 2.55 MB

The ultra-compact TRIBUS is an SPM head for a wide variety of applications. Whether for SPM-spectroscopy, surface imaging, or manipulation of nanoparti cles, for experiments at elevated temperatures, or at the millikelvin scale, in high magnetic fields or in spatially tight environments, the TRIBUS head is the ideal solution when highest resolution, accuracy and flexibility are required.
