MATRIX is a versatile & high-performance SPM controller allowing for a large variety of experiments.

MATRIX SPM Control

Modular Hardware and Software Concept

SPMLT SPMVT SPMSTMSTSLT STMVT STMSP-STMSP-STSIETSBEEMTERSHDLManipulationNanolithography4P-SPMAFMc-AFMnc-AFMQPlus AFMEFMFMMFM-AFMKPFMLFMMFMSCM

  • New high-performance AFM PLL for advanced QPlus® AFM
  • TipGuard and PLL Guide
  • Fast operating QPlus® AFM at low- and room-temperatures
  • Integrated Lock-In
  • New compact design

The MATRIX 4 Control System builds on 30 years of experience in SPM technology and unlocks the full capacity of our leading-edge Scanning Probe Microscopes. The key features include intuitive and flexible experiment control; best-in-class noise floor; ultimate QPlus® capability; full 64-bit software; and modular upgrade paths.

The MATRIX 4 Control System builds on 30 years of experience in SPM technology and unlocks the full capacity of our leading-edge Scanning Probe Microscopes. The MATRIX architecture couples advances in high-speed, low-noise digital electronics with the requirements of the latest SPM applications to offer the user an unprecedented level of signal quality, measurement speed, and experimental flexibility. The expandable design provides solutions for future challenges in Scanning Probe Microscopy.

More Information

MATRIX PLL

MATRIX 4 QPlus Control System includes advanced AFM PLL hardware. The PLL is well proven and has supported many leading scientists in their daily work by offering all standard types of AFM measurements as well as the flexibility to program advanced experiments via the MATE control interface. There is a basic mode for reliable and safe measurements, requiring minimum effort to initiate the experiments. Users can also directly switch to an expert mode giving access to the complete parameter space of an AFM PLL.

Preset options in MATRIX 4 for AFM perform high quality, high resolution QPlus with easy switching to other modes with a few mouse clicks.

TipGuard - Tip Protection

MATRIX 4 includes an advanced TipGuard system that extends tip life-time and facilitates uninterrupted measurements in non-ideal environments. The TipGuard is convenient, and automatically continues experiments after a safety event. The TipGuard hardware and software take several parameters like phase or amplitude into account. Advanced users can individually parameterize the TipGuard and weight the individual trigger thresholds.

TWIN Regulator

Instead of mixing or switching input signals, the TWIN Regulator has two independent complete feedback loops, allowing for separate but simultaneous optimisation of the two regulation signals. Therefore the TWIN Regulator dramatically improves the efficiency of research work by enabling a seamless transition between modes. The TWIN Regulator also opens up chances for unique experiments by combining or mixing different feedback signals.

Tunneling and Force Spectroscopy

The MATRIX Control System realises a n-dimensional concept for data acquisition and data handling and is therefore the ideal platform for tunneling and force spectroscopy. The spectroscopy control window provides a quick method of viewing and setting parameters such as start and end values, number of points, grid settings, slew rates, delay times and the spectroscopy mode. It also provides activation of ramp reversal and repetitions (multiple curve measurement). The MATRIX Automated Task Environment (MATE) allows the user to modify the standard set up for custom experiments.

Beam Deflection AFM Control

The AFM controller (including QPlus) with digital PLL is an integral solution for the MATRIX control system and a perfect match with Scienta Omicron's Scanning Probe Microscopes. It increases flexibility and improves usability. It offers an integrated regulator for Scanning Kelvin Probe Experiments. The superior signal-to-noise characteristic is proven by experiments.

Reference systems

Angle-Resolved Photoemission combined with Low-Temperature SPM and MBE | © Scienta Omicron
64605

LT STM Lab Combined with High-End ARPES

Research focus on topological insulators and quantum anomalous Hall effect, interface high-temperature superconductivity, quantum size effect induced novel properties, and atomic-level controlled growth of various nanostructures by MBE.

more
LT Nanoprobe System with SAM | © Scienta Omicron
111301

LT NANPROBE Lab with SAM

The Low Temperature NANOPROBE defines a new class of analytical instrumentation that merges SEM-navigated local transport measurements with atomic scale precision, high performance STM imaging, spectroscopy, and manipulation at LHe temperatures.

The System is additionally equipped with an retractable NanoSAM energy analyser for chemical mapping by Scanning Auger Microscopy.

more
Epitaxy Laboratory  | © Scienta Omicron
121426

Epitaxy Laboratory

Materials Innovation Platform (MIP) with research focus on fabrication of epitaxially grown III-N semiconductors for optoelectronics and spintronics using a state-of-the-art cleanroom lab.

more
LT Nanoprobe | © Scienta Omicron
121523

LT NANPROBE Lab

The Low Temperature NANOPROBE defines a new class of analytical instrumentation that merges SEM-navigated local transport measurements with atomic scale precision, high performance STM imaging, spectroscopy, and manipulation at LHe temperatures.

The System is additionally equipped with extended sample and SPM sensor preparation facilites.

more
LT Nanoprobe | © Scienta Omicron
121709

LT NANPROBE Lab for optical Experiments

The Low Temperature NANOPROBE defines a new class of analytical instrumentation that merges SEM-navigated local transport measurements with atomic scale precision, high performance STM imaging, spectroscopy, and manipulation at LHe temperatures.

The System is additionally equipped with a specialised optical access for TERS.

more
Lab-10 Multi Compact System | © Scienta Omicron
142415

Lab10 Multi Compact System with VT SPM

The main research interests are the epitaxy growth of oxide films and heterojunctions, the construction of domain walls and phase boundaries in low-dimensional structures, and the exploration of novel physical and chemical properties of oxide surfaces and interfaces.

more
LT NANPROBE Lab f | © Oak Ridge National Laboratory
150234

LT NANPROBE Lab for Nano-Scale Surface Potentiometry

The Low Temperature NANOPROBE defines a new class of analytical instrumentation that merges SEM-navigated local transport measurements with atomic scale precision, high performance STM imaging, spectroscopy, and manipulation at LHe temperatures.

The System is additionally equipped with special electronics for nano-scale surface potentiometry.

more
Materials Innovation Platform with EVO50 MBE, ARPES and LT Nanoprobe at the 2D Crystal Consortium (2DCC-MIP) | © Penn State University
150713

Materials Innovation Platform (MIP) with EVO-50 MBE, ARPES and LT Nanoprobe

The 2DCC-MIP is focused on advancing the synthesis of 2D materials within the context of a national user facility. The 2DCC is developing custom deposition tools with in-situ and real time characterisation and facilities for bulk growth of chalcogenide single crystals. Unique capabilities are also available to simulate growth kinetics through first principles and a reactive potential approach.

more
LT SPM QPlus with Large RM Preparation Chamber for Various Sources, at the Low Dimensional Nanomaterials Vacuum Laboratory, Kunming University of Science and Technology | © Scienta Omicron
154224

LT SPM QPlus with Large RM Preparation Chamber

Research focus on the preparation of low dimensional nano fine structure and chemical reaction mechanisms under ultra-high vacuum conditions.

more

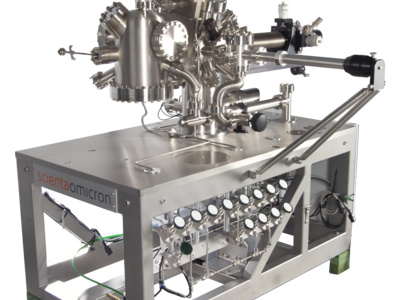

Multiprobe Compact VT SPM 100 | © Scienta Omicron
161204

Multiprobe Compact VT SPM 100

The research set-up is committed to provide important contributions to the growing demand of the development of renewable energy and advanced optoelectronic technology in China.

more

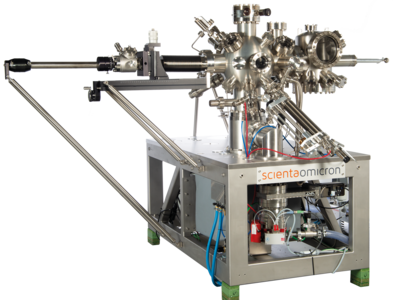

VT AFM | © Scienta Omicron
