Argus CU

A High-Transmission, High-Speed Multipurpose Analyser


  • Excellent sensitivity
  • True counting multi-anode detector
  • Linear response up to the highest count rates
  • Excellent dynamic range
  • Snapshot and dynamic XPS

The Argus CU analyser offers outstanding sensitivity, simple handling and maximum convenience during your XPS measurements. In addition, the Argus CU is accurately characterised for quantification and allows spectroscopy with excellent snapshot performance also when operated with large apertures.

The Argus CU lens design incorporates a thoroughly optimised compression unit which delivers a line focus at the entrance of the hemisphere. The width of the line focus is - to the first order- independent of slit shape and analysed sample area. The lens system features a selectable analysis area from < 60 μm diameter to large areas > 10 mm. A wide acceptance angle ensures excellent count rates.

More Information

Argus CU (R)

The Argus CU (R) is a version of the high intensity Argus CU analyser that includes the mechanics of the Argus CU lens design but is delivered without the electronics necessary for CU mode operation. The electronics upgrade can then be made separately.

The upgrade to full Argus CU functionality can be done at customer site and without removing the analyser from the system or breaking vacuum. The upgrade concerns computer, software and high voltage system.

This option presents an easy path to gain future access to the CU concept. An upgrade to the full CU version will greatly enhance the count rates since the CU unit transform the divergent electron beam originating from an extended round analysis area into a flat beam that passes the analyser entrance slit without transmission losses.

128 Channel Stripe Anode Detector

Argus CU includes a unique 128 channel stripe anode detector which provides massive parallel detection. The detector channels at the exit of the hemisphere are orientated along the dispersive plane so that they record 128 different energies in parallel while integrating incoming singles along the non-dispersive plane. Despite of being a dispersive element the analyser´s hemisphere - in a simplified picture - can be reduced to a non-magnifying lens. This means that the image in the entrance is projected 1:1 to the exit of the hemisphere. For multi-channel detectors it is therefore ideal to fill the hemisphere´s entrance with a line shaped electron beam which has similar dimensions as single anode of the multichannel detector. The Argus CU fulfils this demand by compressing electrons in the non-dispersive plane (see Fig. 1) while keeping transmission high. As a result the analyser offers outstanding sensitivity, simplified handling and maximum convenience during operation.


Pass energy

5 eV – 200 eV

Detector type

128 channel striped anode detector

For full specifications and more information about product options, please do not hesitate to contact your local sales representative.

Acquisition modes

Scanning and snap-shot

Mounting flange

NW 100 CF

Reference systems

NanoESCA | © Scienta Omicron

NanoESCA Lab with Imaging Spin-Filter

The latest state of the art NanoESCA MK III end station will be equipped with a series of preparation and characterization techniques and will enable:

  • Unrivalled new time-, energy-, spin-, angular- and laterally resolved photoelectron spectroscopy.
  • The NanoESCA MK III at ELI-ALPS beam line is expected to provide significant contributions in e.g. molecular electronics, magnetic data storage or solar panel

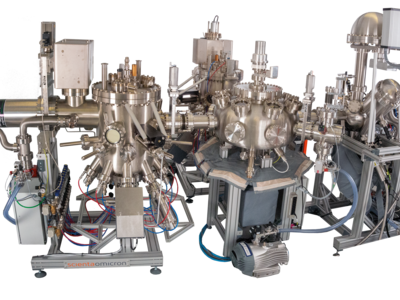

Molecular Beam Epitaxy (MBE), Atomic Layer Deposition (ALD), and in-situ X-Ray Photoelectron Spectroscopy Laboratory | © Scienta Omicron

Materials Innovation Platform (MIP) with MBE, ALD, and XPS

The group’s multidisciplinary research focuses on the growth, characterisation, and device physics of quantum and semiconductor materials for novel devices and applications.

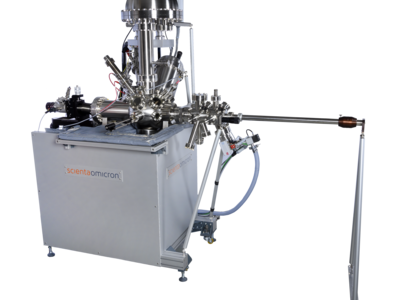

XPS Lab  | © Scienta Omicron

XPS Lab for Small Samples

The XPS Lab is a surface science UHV system, designed for X-ray and VUV photoelectron spectroscopy experiments. Thereby, the surface composition and detailed information about chemical states of virtually every material are accessible.

UHV Cluster System at the D&S Research Center, Samsung Electronics Co.,Ltd. | © Scienta Omicron

Surface Science Analysis Cluster System

Cluster system offering multiple complementary surface science techniques, as XPS, UPS and AFM for detailed sample characterisation. The analysis system is integrated into a linear transfer line to ensure future expandability.



ARGUS CU: High Transmission XPS Analyser

2.25 MB

Argus is a high-transmission, high-speed hemispherical analyser with multi-channel detection technology developed and optimised for uncompromised photoelectron spectroscopy. Argus represents a unique approach to multi-channel XPS detection, matching today´s demanding requirements for fast and trusted quantitative XPS, ease-of-use and reliability.
